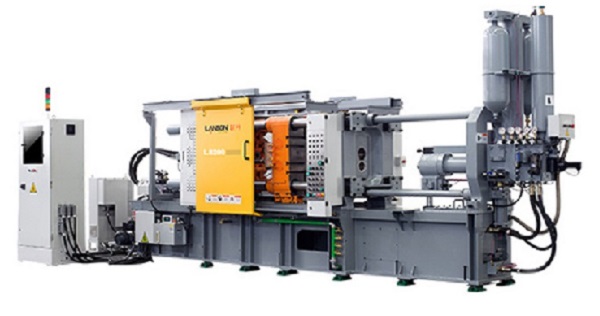

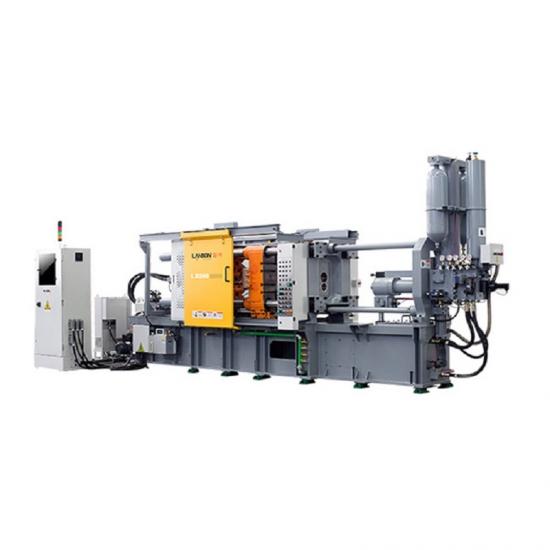

die casting machine


  • Brand:

    Lanson
  • Item No.:

    LS220
  • Product origin:

    China
Product Details
Product Specifications:

ITEM                   Unit LS220
Clamping Force kN 2200
Clamping Stroke mm 400
Ejector Force kN 120
Ejector Stroke mm 100
Die Height(Min.-Max.) mm 200-600
Platen Size(HxV) mm 800X800
Space Between Tie Bars(HxV) mm 510X510
Injection Force(with intensification) kN 280
Injection Stroke mm 370
Plunger Diameter mm 50 60 70
Injection weight kg 1.3 1.9 2.6
Casting Pressure(with intensification) MPa 152 106 77
Casting Area cm2 143 207 282
Max. Casting Area (40MPa) cm2 500
Shot Injection Postion(below center line) mm 0,-140
Plunger Penetration mm 140
Diamater Of Pressure Chamber Flange mm 110
Height Of Pressure Chamber Flange mm 10
Hydraulic Working Pressure MPa 14.5
Hydraulic Oil Tank Capacity L 500
Machine Dimensions(LxWxH) mm 5985X1745X2555



Product Advantages:


Lanson die casting machines are designed and manufactured according to international standards. Combining the latest technology with a wealth of die casting machine operational experience and theories. Lanson created the proprietary new generation die casting machine. Equipped German Siemens control system with powerful functions and stable operation. The real time control system concerned as the leading technology in China, makes the injection system meet the world class. The design of strong and efficient clamping system makes the force condition of the toggle unit more reasonable, machine operating more smoothly and the system more rigid. The reasons above make Lanson machine become the first choice for automotive parts, electrical appliance, telecommunications and all high-end die casting products.

lanson die casting machine

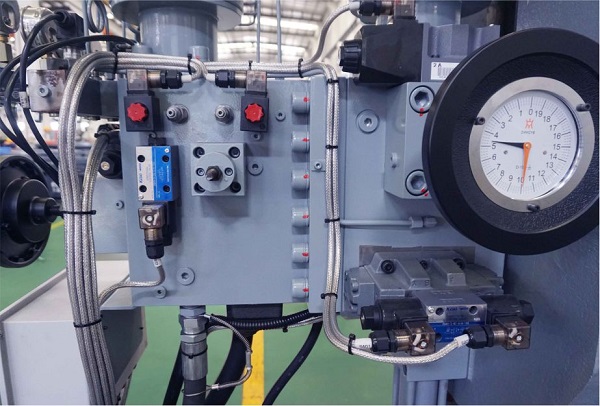

Equip with world-famous, reliable and durable hydraulic components, high-performance and low noise oil pump in order to keep the pressure and rate of flow stable.

lanson die casting machine

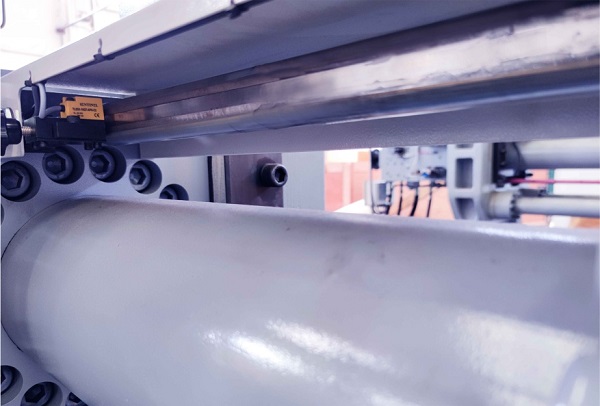

Non-contact injection stroke detection, accurate control and high reliability

lanson die casting machine

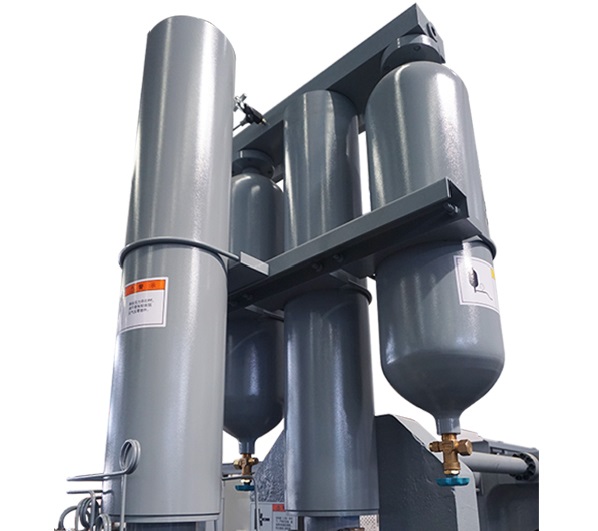

Large accumulator design, small pressure drop, adequate energy, high injection repetition, fast ramp pressure and speed response, more stable for pressure and speed. Improving the efficiency.

lanson die casting machine

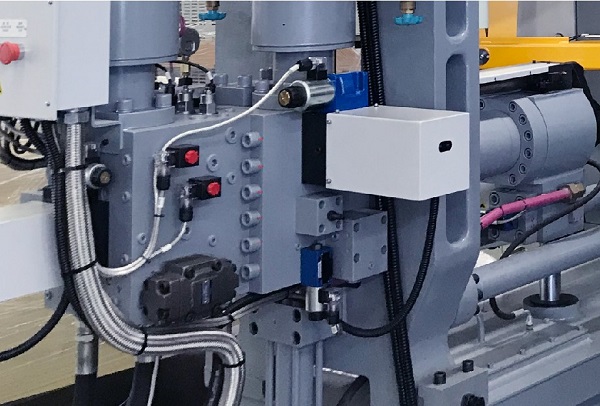

High speed injection, ramp pressure and rate of flow are controlled by the high precision electric proportional valve in the controller.  Convenient, stable and save parameter easily .(Small machines are option, big machines are standard)

lanson die casting machine

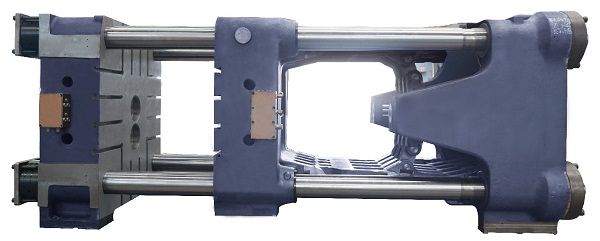

New integrated box type platen, thicker platen design, stronger rigidity, high strength, high stability, durable in impact resistant, longer usage life

lanson die casting machine

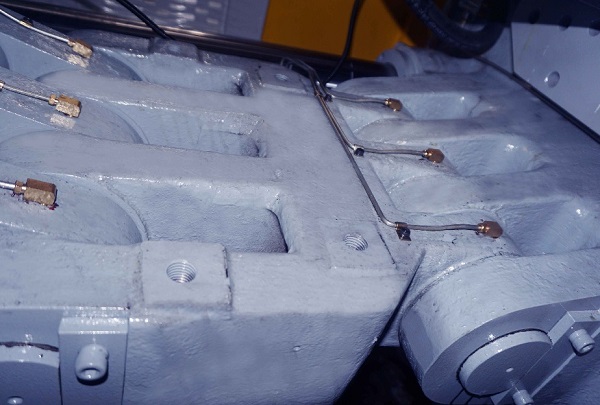

Widened toggle and platen hinge ears, the compression will be even so that the chance of bending and deformation can be reduced.

lanson die casting machine

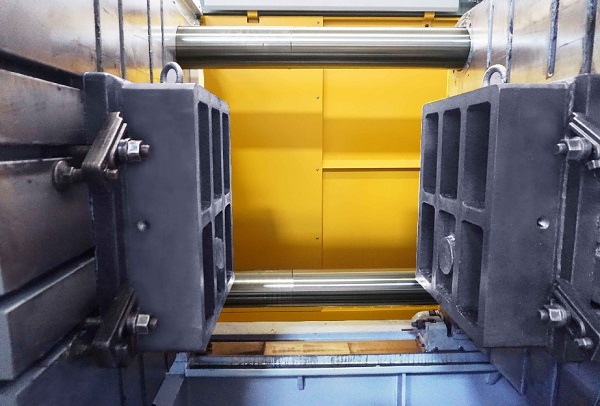

The design of increasing the die height, allowing to accommodate larger die.

lanson die casting machine

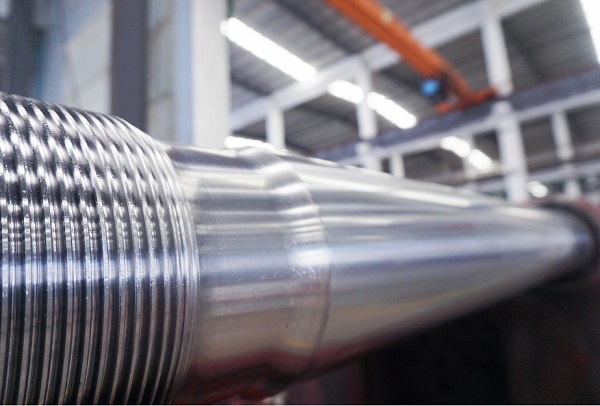

Patented high tensile alloy tie bar design, ensure reliable and durable of the clamping system, longer usage life

lanson die casting machine


German Siemens PLC as the main control system, reliable and stable performance

lanson die casting machine
